PATON ΗΛΕΚΤΡΟΣΥΓΚΟΛΛΗΣΗ MIG-200 240V

PATON ΗΛΕΚΤΡΟΣΥΓΚΟΛΛΗΣΗ MIG-200 240V

636,78 € (με ΦΠΑ 789,61 €)

PATON ΗΛΕΚΤΡΟΣΥΓΚΟΛΛΗΣΗ MIG-200 240V

Προσθήκη στη λίστα επιθυμιών Προσθήκη για σύγκριση
Κωδικός προϊόντος: 016-MIG-200 Κατηγορία: Ετικέτα:
PATON ΗΛΕΚΤΡΟΣΥΓΚΟΛΛΗΣΗ MIG-200 240V

Περιγραφή

PATON ΗΛΕΚΤΡΟΣΥΓΚΟΛΛΗΣΗ MIG-200 240V

PATON ΗΛΕΚΤΡΟΣΥΓΚΟΛΛΗΣΗ MIG-200 240V

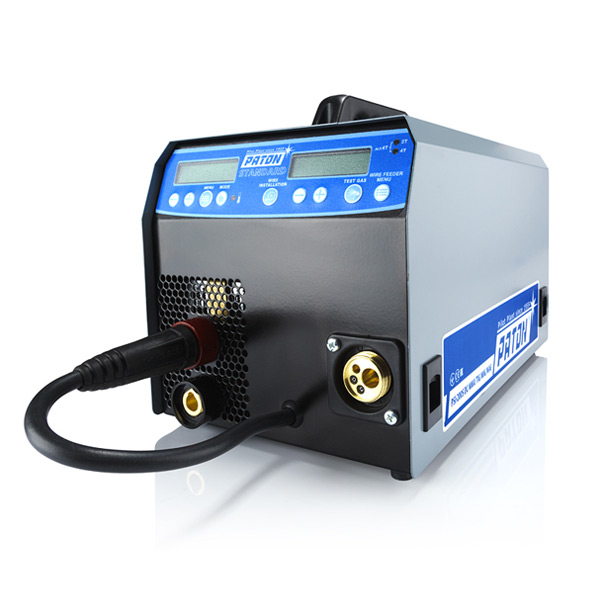

Welder PSI 200 Standard PATON™ Inverter is designed for semi-automatic MIG/MAG arc welding, gas shielded arc welding with TIG method and manual arc welding with MMA shielded electrode, direct current (DC) with PULSE function. Standard series devices are dedicated for home and semi-industrial use. They provide a 45% duty cycle at a full rated current of 200 A without loss of performance or quality. This makes it possible to use solid wire from 0.6 … 1.0 mm in the GMAW method and the electrode with a wire cladding of 1.6 mm or more 5 mm (SMAW). The robust design and ease of use make it easy to work with the device, with its small size, allowing for excellent weld quality.

Rated power supply voltage 50/60 Hz 230 V
Rated power supply current 25 – 28A
Rated welding current 200A
Maximum operating current 270A
Operating load factor % 45% – 200A
100% – 134?
Power supply voltage range 160 – 260 V
Welding current control range 10 – 200A
Welding current control range 12 – 28V
Wire feeding speed control range 2,0 – 16 m/min
Diameter of a stick electrode 1,6 – 4,0 mm
Diameter of electrode wire 2
Number of pressure rolls 0,6 – 1,0 mm
Coil weight, not more than 5 kg
Welding processes with a pulse welding mode MMA: 0,2…500 Hz
TIG: 0,2…500 Hz
MIG/MAG: 5…500 Hz
Function “Hot-Start” Adjustable
Function “Arc-Force” Adjustable
Function “Anti-Stick” Automatic
Reduction of open-circuit voltage ON/OFF
Open-circuit voltage 12 / 75 V
Welding arc starting voltage 110 V
Rated consumed power 5,5 – 6,1 kVA
Maximum consumed power 7,0 kVA
Efficiency coefficient 90%
Cooling Automatic
Operating temperature range –25 … +45 ??
Fulfilled standards: EN 60204 – 1:2006
EN 60974 – 1:2012
EN 60974 – 10:2014
Overall dimensions (length, width, height) 415 ? 245 ? 298
Weight 11,2
Protection class* IP 21
