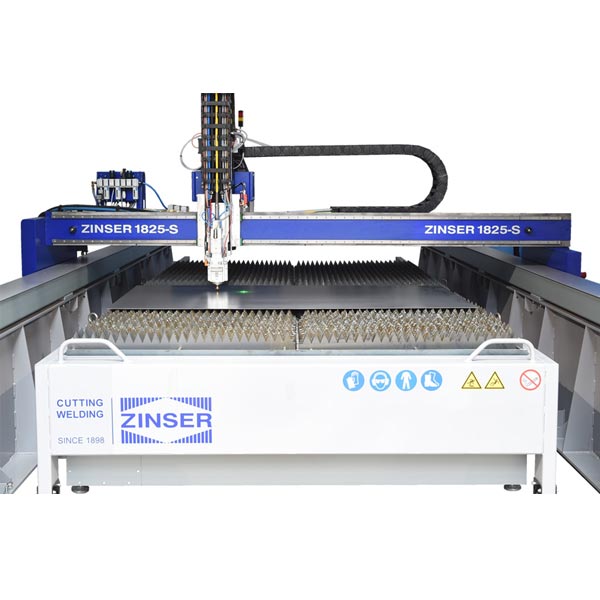

ZINSER LASER PANTOGRAPH & PLASMA 1825-S
ZINSER LASER PANTOGRAPH & PLASMA 1825-S
The ZINSER 1825-S Fiber Laser is a high-quality machine guide for laser, plasma and combined cutting tasks. The portal machine combines the required speed and precision for laser and plasma cutting with the durability and service life of an industrial machine. The ZINSER 1825-S Fiber Laser has double-sided AC and linear motion respectively. ball guides for the X-axis (25 mm) and the Y-axis (35 mm).
The ZINSER 1825-S Fiber Laser has been specially developed for laser cutting. All machine components are adapted to the specific requirements of this cutting process.
1825-S ADVANTAGES
- Very economical solution in the world of laser cutting
- Efficient even for temporary use in production
- Low operating costs
- Minimal cutting costs in laser quality
- Lower operating and maintenance costs compared to plasma
TECHNICAL INFORMATION
- Track width (C): 1685 – 4685 mm (in 500 mm steps)
- Working width (A) (with 1 torch): C – 750 mm
- Machine width (D): C + ~300 mm
- Machine length (E): Working length (B) + 1800 mm
- Number of torch carriers: max. 2
- Cutting thickness: depends on laser system
- Drive: AC – servo drives
- Input voltage: 400 V / 50 Hz
- Cutting speed: up to 18000 mm / min (depending on laser system)
Additional information
| brand | ZINSER |
|---|
Brand
ZINSER
