Dust and fume extraction system | GPPH – Poland

This leaflet presents the available versions of the grinding / welding workstation and the matching extraction unit. Versions 1 to 3 are the same workstation in three levels of protection. Please select the version that meets your requirements.

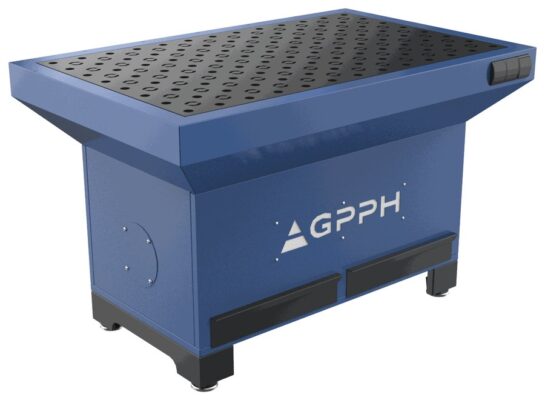

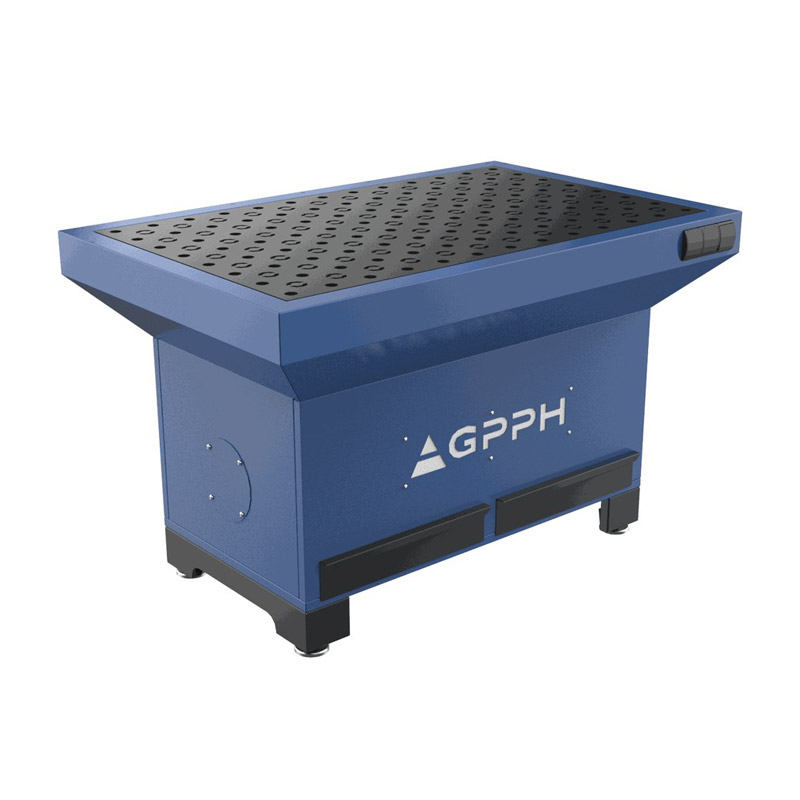

Grinding-Welding Station – Base

TECHNICAL DATA

• Construction material: powder-coated structural steel
• Working tabletop made of S355J2+N steel
• Tabletop thickness: 8 mm
• Hole system: Ø28 mm, grid 100×100 mm
• Tabletop dimensions: 1270 x 770 mm
• Load capacity: up to 500 kg of evenly distributed load
• Flatness tolerance: ≤ 1 mm across the entire tabletop surface
• Adapted for cooperation with the GPPH IQ Aero Clean extraction system
• Variant: base only, without guards

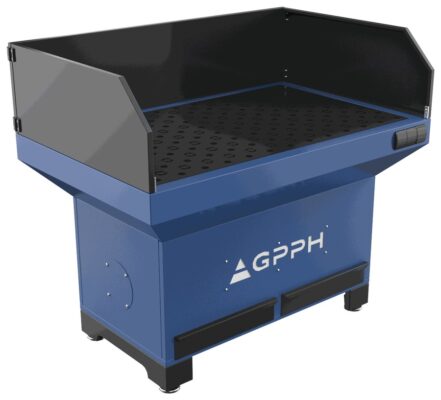

Grinding-Welding Station – Base with Guards

TECHNICAL DATA

• Construction material: powder-coated structural steel
• Working tabletop made of S355J2+N steel
• Tabletop thickness: 8 mm
• Hole system: Ø28 mm, grid 100×100 mm
• Tabletop dimensions: 1270 x 770 mm
• Load capacity: up to 500 kg of evenly distributed load
• Flatness tolerance: ≤ 1 mm across the entire tabletop surface
• Adapted for cooperation with the GPPH IQ Aero Clean extraction system
• Shields: side and rear, made of steel sheet, protecting against sparks and metal splatter
• Variant: with side and rear steel shields

Grinding-Welding Station – Base with Top Exhaust

TECHNICAL DATA

• Construction material: powder-coated structural steel
• Working tabletop made of S355J2+N steel
• Tabletop thickness: 8 mm
• Hole system: Ø28 mm, grid 100×100 mm
• Tabletop dimensions: 1270 x 770 mm
• Load capacity: up to 500 kg of evenly distributed load
• Flatness tolerance: ≤ 1 mm across the entire tabletop surface
• Adapted for cooperation with the GPPH IQ Aero Clean extraction system
• Shields: side and rear, made of steel sheet, protecting against sparks and metal splatter
• Lighting: LED fixture built into the upper part of the workstation, adapted for industrial working conditions
• Variant: with full enclosure, providing maximum safety and workstation isolation
