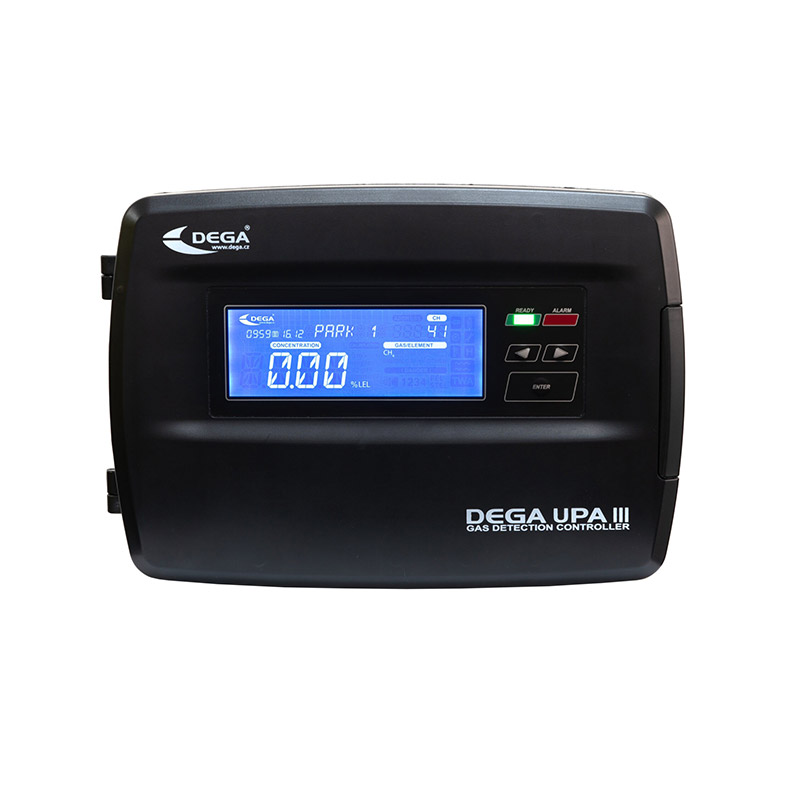

DEGA GAS DETECTION CONTROL PANEL UPA III
DEGA GAS DETECTION CONTROL PANEL UPA III
The third generation evaluation control panel is designed as a separate device designed for surface mounting. It is used to supply 16 to 32 gas transmitters connected via RS485 and up to 8 gas transmitters connected via a 4-20 mA current loop. For transmitters, it evaluates gas leakage in four levels. The status of all transmitters is indicated on the control panel by means of an LCD display. The control panel can be equipped with up to 10 arbitrarily configurable relays, output for optical and acoustic signaling, USB port, and RS485 for connection to a superior system (PLC, PC with visualization).
- Power voltage: 230 V AC/15 VA or 24 VDC/2 A nominal
- Functional hazard: EN61508
- Dimensions without bushings: 280 x 200 x 85 mm (WxHxD)
- Weight: 1,4 kg
- Internal memory history capacity: 34 days with a recording interval of 60 s
- Memory storage interval: 60 s (adjustable range 10-255 s)
- Ambient temperature: -20 °C to +60 °C
- Relative humidity: 0-90 % RV
- Degree of protection with cover: IP 54
- Working environment” BE1 – non-explosive environment
Additional information
| brand | DEGA |
|---|
Brand
DEGA
